Electrostatic discharge (ESD) poses a significant threat to sensitive electronic components in manufacturing and handling environments. To combat this invisible menace, companies implement specialized areas known as Electrostatic Protected Areas (EPAs) or EPA zones. These controlled environments play a crucial role in safeguarding delicate electronics from potentially devastating ESD events. But what exactly is an EPA zone, and how does it effectively prevent ESD damage?

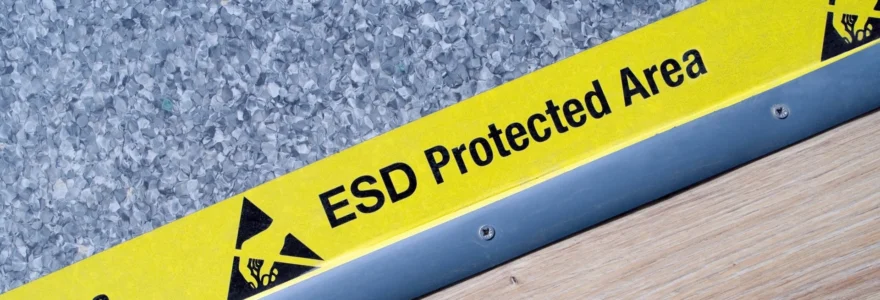

EPA zones protect sensitive electronics from ESD
An EPA ESD protected area is a designated space where static electricity is strictly controlled to minimize the risk of ESD damage to sensitive electronic components. These zones are carefully designed and maintained to ensure that all surfaces, objects, and personnel within them are kept at the same electrical potential, effectively neutralizing the threat of static discharge.
EPA zones function like a protective bubble around sensitive electronics, shielding them from the harmful effects of static electricity. By implementing a comprehensive system of grounding, shielding, and charge dissipation, these areas create a safe haven for handling and processing ESD-sensitive devices (ESDS).
The concept of EPA zones is rooted in the understanding that even small electrostatic discharges, imperceptible to human senses, can cause significant damage to modern electronic components. With the increasing miniaturization and complexity of electronic devices, the need for effective ESD protection has never been more critical.
Key components of an effective EPA zone
Creating an effective EPA zone requires a multifaceted approach that addresses various aspects of static control. Let's explore the essential components that work together to make an EPA zone a fortress against ESD damage:
Grounded work surfaces prevent charge buildup
At the heart of any EPA zone are properly grounded work surfaces. These surfaces, typically made of static-dissipative materials, play a crucial role in preventing the accumulation of static charges. When an operator places an ESDS device on a grounded surface, any potential static charge is safely conducted away, neutralizing the risk of ESD.
Grounded work surfaces come in various forms, including:
- ESD-safe workbenches
- Conductive mats
- Dissipative table coverings
- Specialized ESD flooring
These surfaces are connected to a common ground point, ensuring that all workstations within the EPA zone maintain the same electrical potential. This grounding network forms the foundation of ESD protection in the workspace.
Personnel grounding wrist straps dissipate charges
Human bodies are significant sources of static electricity, capable of generating thousands of volts through simple movements. To address this, EPA zones employ personnel grounding devices, with wrist straps being the most common and effective solution.
Wrist straps consist of a conductive band worn snugly around the wrist, connected to the common ground point via a coiled cord. This setup ensures that any static charge generated by the operator is immediately dissipated, preventing the buildup of potentially damaging voltages.
It's crucial to note that wrist straps require daily testing to verify their functionality. A faulty or improperly worn wrist strap can compromise the entire ESD protection system, leaving sensitive components vulnerable to damage.
Esd-safe flooring grounds personnel walking in
While seated operators rely on wrist straps, mobile personnel require a different solution. ESD-safe flooring works in conjunction with special ESD footwear to create a continuous path to ground for walking personnel. This flooring system typically consists of conductive or static-dissipative materials that effectively channel static charges away from the body.
The effectiveness of ESD flooring depends on several factors:
- The resistivity of the flooring material
- Proper installation and grounding
- Regular maintenance and cleaning
- Use of compatible ESD footwear
When implemented correctly, ESD-safe flooring provides a seamless grounding solution for all personnel within the EPA zone, regardless of their mobility.
Establishing proper ESD control procedures within EPA
While the physical components of an EPA zone are crucial, their effectiveness relies heavily on proper procedures and protocols. Establishing and maintaining robust ESD control procedures is essential for the long-term success of any EPA implementation.
Regularly test grounding equipment for functionality
The integrity of grounding equipment is paramount in maintaining an effective EPA zone. Regular testing ensures that all grounding systems are functioning as intended, providing consistent protection against ESD events.
Key testing procedures include:
- Daily wrist strap checks using a wrist strap tester
- Periodic testing of work surface resistivity
- Regular verification of flooring system conductivity
- Inspection and testing of ionizers and other ESD control devices
By implementing a rigorous testing schedule, companies can identify and address potential weaknesses in their ESD protection system before they lead to costly damage or product failures.
Train personnel on ESD prevention protocols
Even the most advanced EPA zone is only as effective as the people working within it. Comprehensive training programs are essential to ensure that all personnel understand the importance of ESD prevention and the correct use of ESD control equipment.
Effective ESD training should cover:
- The basics of static electricity and its potential impacts
- Proper use of wrist straps, ESD footwear, and other personal grounding devices
- Handling procedures for ESD-sensitive components
- Identification and reporting of potential ESD hazards
- The importance of maintaining a clean and organized EPA zone
Regular refresher courses and updates on new ESD control technologies help maintain a high level of awareness and compliance among personnel.
Restrict ungrounded items from entering EPA
Maintaining the integrity of an EPA zone requires strict control over items entering the area. Ungrounded objects, particularly those made of insulative materials, can introduce static charges and compromise the controlled environment.
Implementing a robust entry protocol is crucial for preventing contamination of the EPA zone. This may include:
- Designated entry points with ESD checking stations
- Use of ionizers at entry points to neutralize charges on incoming items
- Proper packaging and handling procedures for components entering the EPA
- Restrictions on personal items that may generate or retain static charges
By carefully controlling what enters the EPA zone, companies can maintain the effectiveness of their ESD protection measures and minimize the risk of damage to sensitive components.
Benefits of implementing EPA zones in manufacturing
The implementation of EPA zones in manufacturing environments offers numerous benefits beyond basic ESD protection. These controlled areas contribute significantly to overall product quality, reliability, and operational efficiency.
Key benefits of EPA zones include:
- Reduced product failure rates due to ESD-related damage
- Improved product reliability and customer satisfaction
- Decreased warranty claims and returns
- Enhanced manufacturing yield and efficiency
- Compliance with industry standards and customer requirements
Moreover, EPA zones foster a culture of quality and attention to detail that often extends beyond ESD control, positively impacting other aspects of the manufacturing process.
Implementing an effective EPA zone is not just about protecting components; it's about safeguarding your company's reputation and bottom line.
The return on investment for a well-designed EPA zone can be substantial, particularly for manufacturers dealing with high-value or mission-critical electronic components.
Auditing EPA zones to maintain ESD compliance
Establishing an EPA zone is just the beginning; maintaining its effectiveness requires ongoing vigilance and periodic auditing. Regular audits help ensure that all aspects of the ESD control program remain compliant with industry standards and continue to provide adequate protection for sensitive components.
Conduct periodic ESD audits of EPA
ESD audits should be comprehensive, covering all aspects of the EPA zone and associated procedures. These audits typically include:
- Visual inspection of ESD control equipment and signage
- Measurement of surface resistivity and charge decay times
- Verification of grounding systems and connections
- Assessment of personnel compliance with ESD procedures
- Review of ESD control documentation and training records
The frequency of audits may vary depending on the sensitivity of the components being handled and the specific requirements of industry standards or customer specifications.
Document audit findings to demonstrate compliance
Thorough documentation of audit findings is crucial for demonstrating compliance with ESD control standards and tracking the effectiveness of the EPA zone over time. Audit reports should include:
- Detailed measurements and test results
- Observations of procedural compliance
- Identified non-conformances or areas for improvement
- Recommendations for corrective actions
- Photographic evidence, where applicable
These reports serve as valuable records for internal quality control purposes and may be required for certification or customer audits.
Address Non-Compliances promptly to minimize risks
Identifying non-compliances during an audit is only half the battle; addressing these issues promptly and effectively is crucial for maintaining the integrity of the EPA zone. A structured approach to handling non-compliances typically involves:
- Assessing the severity and potential impact of the non-compliance
- Developing a corrective action plan with clear responsibilities and timelines
- Implementing necessary changes or improvements
- Verifying the effectiveness of corrective actions
- Updating procedures or training materials as needed
By addressing non-compliances quickly and thoroughly, companies can prevent minor issues from escalating into significant risks to their ESD protection program.
Continuous improvement should be the goal of any EPA zone management strategy. Regular audits, coupled with a commitment to addressing findings, ensure that the ESD protection measures evolve to meet changing manufacturing needs and advancing technology.
